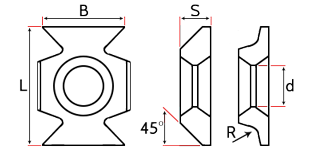

Codice
B x L x S
R
d
Qualità TK20
TIF 45°
16,0 x 22,0 x 5,0
45°
6,5
Magazzino
TIF R. 1,5
16,0 x 22,0 x 5,0
1,5
6,5
Magazzino
TIF R. 2,0
16,0 x 22,0 x 5,0
2,0
6,5
Magazzino
TIF R. 2,5
16,0 x 22,0 x 5,0
2,5
6,5
A richiesta
TIF R. 3,0
16,0 x 22,0 x 5,0
3,0
6,5
Magazzino
TIF R. 3,5
16,0 x 22,0 x 5,0
3,5
6,5
A richiesta
TIF R. 4,0
16,0 x 22,0 x 5,0
4,0
6,5
A richiesta
TIF R. 4,0
16,0 x 22,0 x 6,0
4,0
6,5
Magazzino
TIF R. 5,0
16,0 x 22,0 x 6,0
5,0
6,5
Magazzino

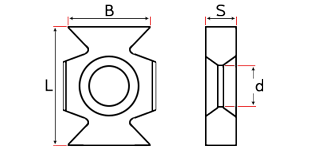

FARFALLA PER PROFILI PARTICOLARI
Codice
B x L x S
P
d
Qualità TK20
TIF S. 5,0
16,0 x 22,0 x 5,0
=
6,5
Magazzino
TIF S. 7,0
16,0 x 22,0 x 7,0
=
6,5
Magazzino
TIF S. 10,0
16,0 x 22,0 x 10,0
=
6,5
Magazzino

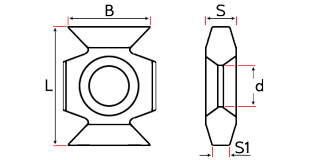

ROMPIGOCCIA A FARFALLA
Codice
B x L x S
s1
d
Qualità TK20
TIF S. 5,0 PD
16,0 x 22,0 x 5,0
2,6
6,5
Magazzino
TIF S. 7,0 PD
16,0 x 22,0 x 7,0
4,6
6,5
Magazzino
TIF S. 10,0 PD
16,0 x 22,0 x 10,0
4,3 / 7,0
6,5
Magazzino
RAGGIATORI INTERNI ROMBOIDALI
Codice
L x B x S
R
d
Qualità TK20
IRR 954 DX
31,7 x 16,0 x 3,0
1,7
6,5
Magazzino
IRR 954 SX
31,7 x 16,0 x 3,0
1,7
6,5
Magazzino
RAGGIATORI INTERNI TRIANGOLARI
Codice
L x B x S
R
d
Qualità TK20
IRT 894
21,0 x 23,0 x 3,0
1,8
7,0
Magazzino
INSERTI PER CANALI PARALLELI
Codice
B x L x S
d
Qualità TK20
TIC-S 3116/3
16,0 x 31,0 x 3,0
8,5
Magazzino
TIC-S 3116/4
16,0 x 31,0 x 4,0
7,5
Magazzino
TIC-S 3116/5
16,0 x 31,0 x 5,0
7,5
Magazzino
TIC-S 3116/6
16,0 x 31,0 x 6,0
7,5
Magazzino
INSERTI PER CANALI INCLINATI
Codice
B x L x S
d
Qualità TK20
TIC-S 3416/3
16,0 x 31,0 x 3,0
8,5
Magazzino
TIC-S 3416/4
16,0 x 31,0 x 4,0
7,5
Magazzino
TIC-S 3416/5
16,0 x 31,0 x 5,0
7,5
Magazzino
TIC-S 3416/6
16,0 x 31,0 x 6,0
7,5
Magazzino
INSERTI PER GUARNIZIONI 90°
Qualità TK20
Magazzino
Codice
L x B x S
S1
d
α
TRC 90° DX
22,7 x 16,0 x 7,5
3,0
7,5
90°
TRC 90° SX
22,7 x 16,0 x 7,5
3,0
7,5
90°
INSERTI PER GUARNIZIONI 30°
Qualità TK20
Magazzino
Codice
L x B x S
S1
d
α
TRC 30° DX
22,7 x 16,0 x 7,5
3,0
7,5
30°
TRC 30° SX
22,7 x 16,0 x 7,5
3,0
7,5
30°
